Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 32 A |
| Power Rating | 5.4 W |
| Normal State Configuration | 4NO |
| Series | LC1D |
| Contact Voltage Rating | 690 V ac |
| Number Of Auxiliary Contacts | 2 |
| Function | Load Control |
| Range | TeSys D |
| Terminal Type | Screw |
| Width | 45mm |
| Length | 91mm |
| Maximum Operating Temperature | +60°C |
| Depth | 107mm |
| Minimum Operating Temperature | -5°C |

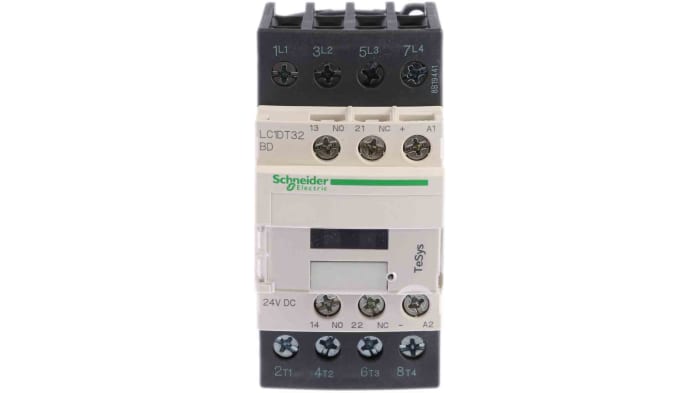

Schneider Electric LC1DT32BD Contactor
The Schneider Electric LC1DT32BD model is a 4 pole contactor featuring a 24 V dc operating coil, with an AC-3 full load current rating of 32 A
Features & Benefits
• Part of Schneider Electric’s TeSys D range which is designed for simple integration with control systems
• 4NO (normally open) configuration means the contacts are open when they are not actuated and closed when energised
• Wide operating temperatures range of -5°C to +60°C for use in demanding industrial settings
Applications
• Electric motors
• Industrial control systems
• Shipping industry
How do I correctly mount this unit?
This contactor comes complete with screws for easy mounting. You can position it on a flat panel or on your DIN rail for easier organisation.
