Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 50 A |
| Power Rating | 22 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Series | LC2D |
| Range | TeSys D |
| Number Of Auxiliary Contacts | 2 |
| Terminal Type | Screw |
| Width | 165mm |
| Depth | 142mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -5°C |
| Length | 132mm |

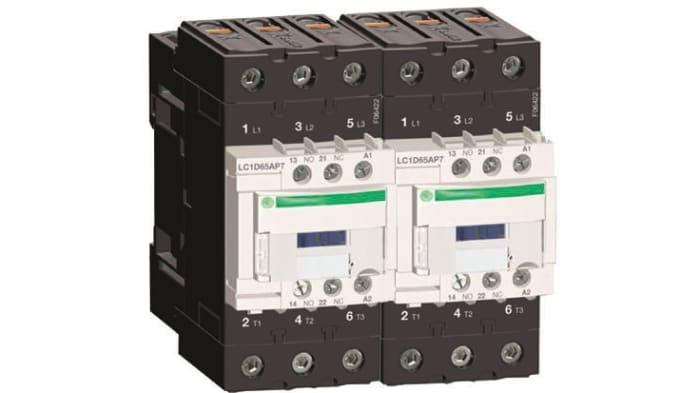

Everlink reversible switches
TeSys changeover contactors fitted with two Everlink power terminals, with hexagon socket-head screw connection.
Allows for a single piece starter assembly with an Everlink breaker (vertical or side by side assembly).
