Description
| คุณสมบัติ | Value |
| Coil Voltage | 110 V ac |
| Number of Poles | 3 |
| Power Rating | 55 kW |
| Contact Voltage Rating | 1 kV ac, 300 V dc |
| Series | LC2D |
| Range | TeSys D |
| Function | Reversing |
| Terminal Type | Cable |
| Width | 182mm |
| Depth | 158mm |
| Maximum Operating Temperature | +60°C |
| Length | 127mm |
| Minimum Operating Temperature | -5°C |

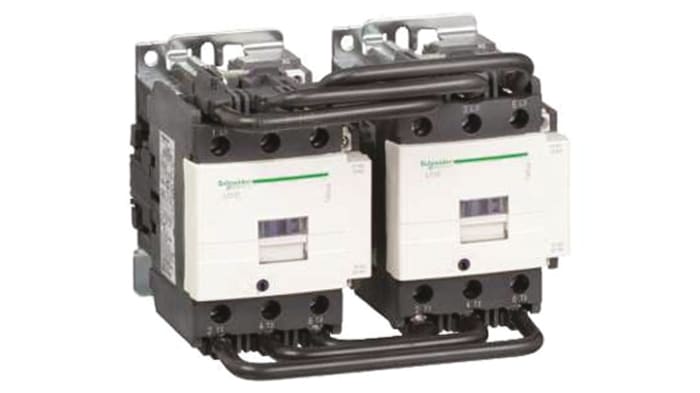

The Schneider Electric LC2D80G7 is a LC2D series 3 pole TeSys Deca reversing contactor used for motor control.
Poles description 3P
Pole contact composition 3no
Rated operational current 80A
Control circuit voltage 120 V AC
