Description
| คุณสมบัติ | Value |
| Coil Voltage | 400 V ac |
| Number of Poles | 3 |
| Power Rating | 30 kW |
| Contact Voltage Rating | 300 V dc, 690 V ac |
| Series | LC2D |
| Range | TeSys D |
| Function | Reversing |
| Terminal Type | Cable |
| Width | 119mm |
| Depth | 120mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -5°C |
| Length | 122mm |

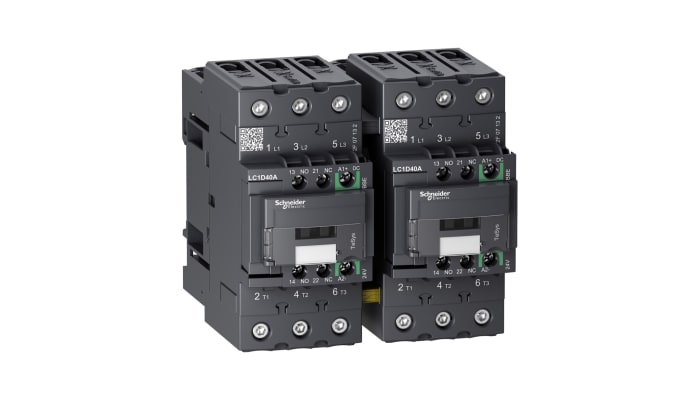

The Schneider Electric LC2D40AV7 is a LC2D series 3 pole TeSys Deca reversing contactor used for motor control.
Poles description 3P
Pole contact composition 3no
Rated operational current 40 A
Control circuit voltage 400 V AC
