Description
| คุณสมบัติ | Value |
| Number of Poles | 3 |
| Contact Current Rating | 115 A |
| Power Rating | 55 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 1 kV ac |
| Series | LC1F |
| Range | TeSys F |
| Terminal Type | Screw |
| Width | 163.5mm |
| Depth | 171mm |
| Maximum Operating Temperature | +60°C |
| Length | 162mm |
| Minimum Operating Temperature | -40°C |

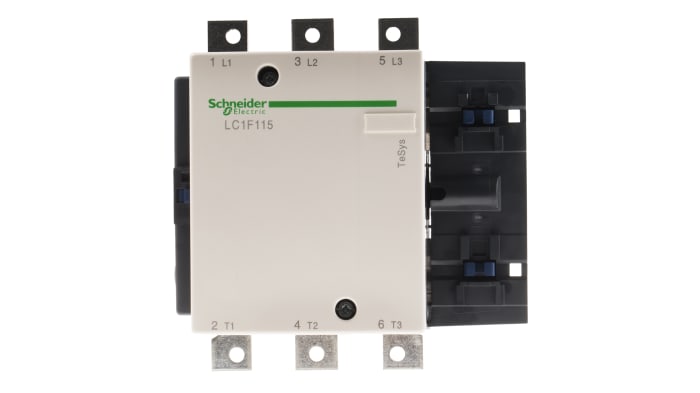

Schneider Electric LC1F115 Contactor
The LC1F115 model is a coil less 3 pole contactor that offers long mechanical and electrical life and a consistent low-voltage architecture to ensure safe and reliable operation. The LC1F115 offers an AC-3 full load current rating of 115 A.
Features & Benefits
• 8kV rated to handle sudden power spikes
• Low power dissipation of 5W for energy efficiency
• Tightening torque of 10Nm for a secure, vibration-resistant connection
• Wide operating temperature range of -5°C to +55°C for safe use in industrial settings
• Bidirectional peak limiting diode suppressor for coil protection
Applications
• Relay coils
• Powering control and signalling switches
What is a double-break contactor?
A double-break contactor is one whose contacts open at two separate places on the circuit. Double-break contactors like this one dissipate heat readily and handle higher supply voltages.
