Description
| คุณสมบัติ | Value |
| Number of Poles | 3 |
| Contact Current Rating | 400 A |
| Power Rating | 250 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 1 kV ac |
| Series | LC1F |
| Range | TeSys F |
| Terminal Type | Screw |
| Width | 213mm |
| Depth | 219mm |
| Length | 206mm |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -5°C |

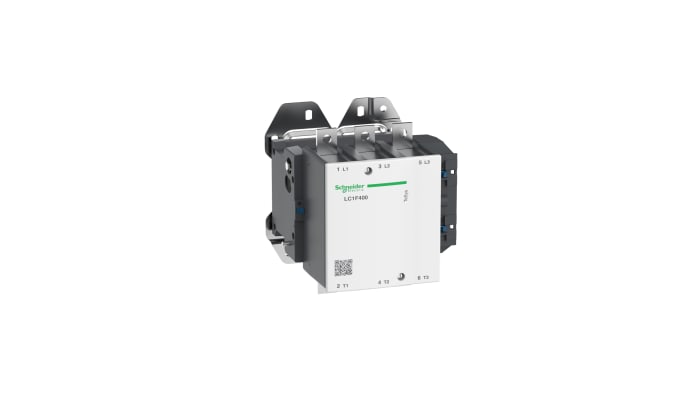

Schneider Electric LC1F400 Contactor
The LC1F400 model is a coil less 3 pole contactor that offers long mechanical and electrical life and a consistent low-voltage architecture to ensure safe and reliable operation. The LC1F400 offers an AC-3 full load current rating of 400 A.
• IP20 (ingress protection) rating indicates ability to withstand dust and objects larger than 12mm
• Power rating of 250kW for heavy-duty industrial applications
• Integrated 500A fuse for short-circuit protection
• Low power dissipation per pole of 42W for energy efficiency
• Wide operating temperature range of -5°C to +55°C for use in demanding environments
Applications
• Industrial control systems
• Lifts and escalators
• Material handling equipment
What’s the maximum operating altitude of this contactor?
The maximum operating altitude is the maximum height above sea level at which this component can function at full potential without derating. The value for this contactor is 3000 metres.
