Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 4 |
| Contact Current Rating | 25 A |
| Power Rating | 1.6 W |
| Normal State Configuration | 4NO |
| Series | GC25 |
| Contact Voltage Rating | 415 V ac |
| Number Of Auxiliary Contacts | 1 |
| Range | Tesys GC |
| Terminal Type | Screw |
| Depth | 65mm |
| Length | 81mm |
| Width | 35mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -5°C |

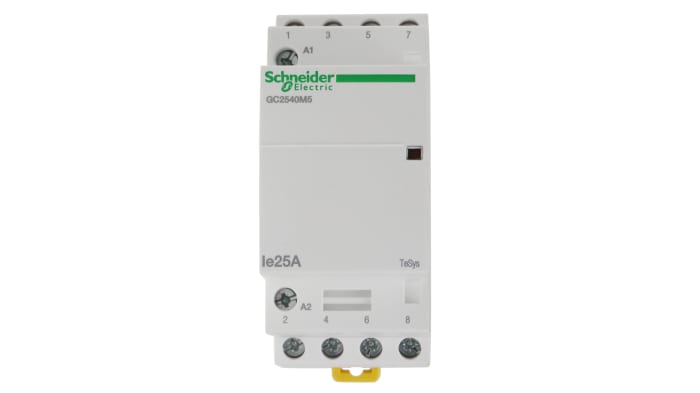

Schneider Electric GC2540M5 Miniature Contactor
The GC2540M5 is a miniature 4 pole contactor featuring a 240 V ac operating coil and an AC-3 full load current of 25 A.
Features & Benefits
• Coil voltage of 240V AC makes the unit suitable for use with UK mains electricity
• Operating temperature range of -5°C to +50°C for versatile use in a range of environments
• Configuration of 4NO (normally open) completes the circuit when energised
Applications
• Squirrel cage motors
• Escalators
• Air-conditioning units
Is this a double-break pole type contactor?
Yes, components in Schneider Electric’s TeSys GC range use linear translation movement that provides double breaking of the poles. This divides the connection in such a way that it forms two sets of contacts.
Is this contactor noisy?
The TeSys GC range is optimised for low noise so this device can be used in public areas.
Schneider Electric Modular Contactors
Low noise a.c. compact modular contactors and accessories are ideal for heating lighting and building service type applications. The units are designed for mounting in control panels or cabinets on symmetrical DIN rail or they may be housed in modular enclosures.
