Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 4 |
| Contact Current Rating | 63 A |
| Normal State Configuration | 4NO |
| Contact Voltage Rating | 415 V ac |
| Series | GC63 |
| Range | Tesys GC |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 52.5mm |
| Depth | 65mm |
| Maximum Operating Temperature | +50°C |
| Length | 81mm |
| Minimum Operating Temperature | -5°C |

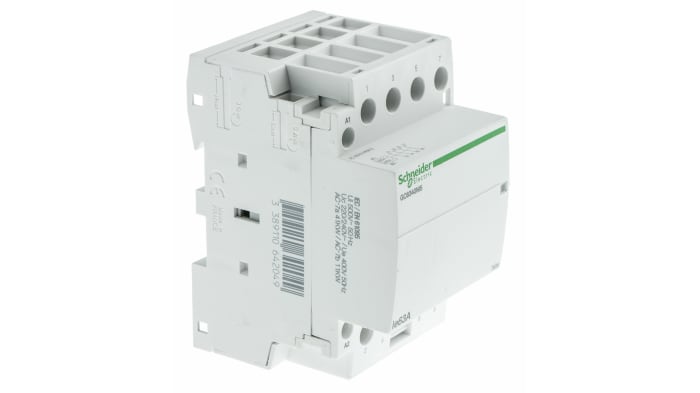

Schneider Electric GC6340M5 Miniature Contactor
The GC6340M5 is a miniature 4 pole contactor featuring a 240 V ac operating coil and an AC-3 full load current of 63 A.
Features & Benefits
• Built-in auxiliary contacts for extra switching functionality
• Panel and DIN rail mounting options for versatility to suit your design specification
• Electric terminals are located away from reach of your fingers for electrical safety
• Wide operating temperature of -5°C to +50°C for use in commercial and industrial environments
Applications
• Drilling machines
• Domestic appliances
• Industrial mixers
How do I maintain this contactor?
You can maintain this contactor by regularly cleaning its terminals to remove dust and contaminants that may cause overheating. Use a dry air blower for safe dust removal.
Schneider Electric Modular Contactors
Low noise a.c. compact modular contactors and accessories are ideal for heating lighting and building service type applications. The units are designed for mounting in control panels or cabinets on symmetrical DIN rail or they may be housed in modular enclosures.
