Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 12 A |
| Power Rating | 5.5 kW |
| Normal State Configuration | 3NO |
| Series | LC1K |
| Contact Voltage Rating | 690 V ac |
| Number Of Auxiliary Contacts | 1 |
| Range | TeSys K |
| Terminal Type | Screw |
| Width | 45mm |
| Length | 58mm |
| Depth | 57mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -25°C |

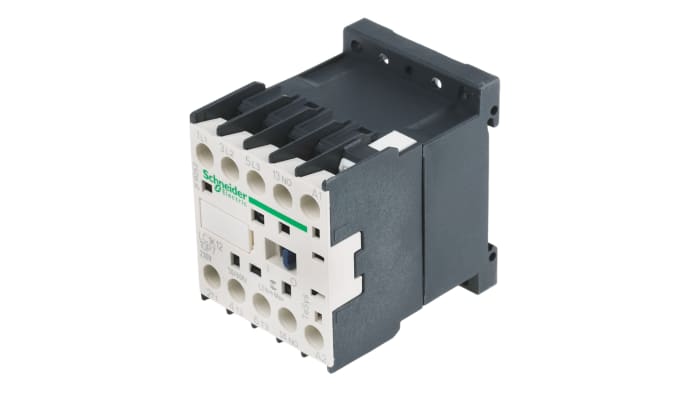

Schneider Electric LC1K1210P7 Miniature Contactor
The LC1K1210P7 is a miniature 3 pole contactor featuring a 230 V ac operating coil, an AC-3 full load current of 12 A and a normally open auxiliary contact.
Features & Benefits
• Wide operating temperature range of -25°C to +50°C for versatile use in industrial environments
• Normally open (NO) contacts close on activation and return to open position when the coil is disengaged
• Compact dimensions of 58mm length and 57mm depth
Applications
• Pump operations
• Conveyor systems and bucket elevators
• Air-conditioning units
What’s the utilisation category of a contactor?
The utilisation categories define the making and breaking values of contactors. They’re based on the type of load and the operating cycle conditions. This contactor has been categorised for AC-1 (including resistive loads, heating and distribution) and AC-3 (including squirrel cage motors, lifts, escalators, conveyors and bucket elevators).
