Description
| คุณสมบัติ | Value |
| Coil Voltage | 110 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 6 A |
| Power Rating | 3 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Series | LC1K |
| Range | TeSys K |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Cage Clamp |
| Width | 45mm |
| Depth | 57mm |
| Length | 58mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +50°C |

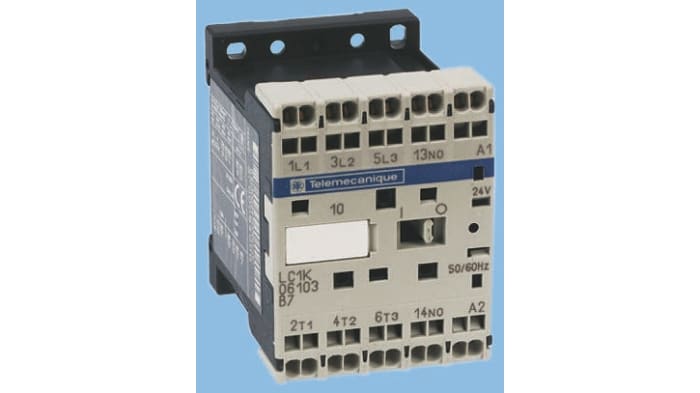

3 Pole Contactors with Spring Terminals
Contactors have a switching voltage of 440Vac and a coil consumption (ac coils 50/60Hz rated) of 4.5VA (Hold in) and 30VA (inrush).
Spring terminals with safety stop to prevent damage to the terminals if excessive force is used during wiring
Consistent connection tightness
1 x N/O auxiliary contact
Resistance to vibration & temperature cycling
Conformance standard IEC947-4 EN60947-4-1
DIN rail or screw fixing
Ideal for use with GV2-M motor circuit breakers
