Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 6 A |
| Power Rating | 2.2 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Range | TeSys K |
| Series | LC1K |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 57mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +50°C |
| Length | 58mm |
Schneider Electric LC1K TeSys K Miniature Contactors
TeSys K Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and for inductive motor applications. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range, either AC or DC, to have the same physical size and panel footprint for convenience.
Features and Benefits
• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Easily installed accessories
• Instantaneous auxiliary contact
• Flexible control circuit to suit a wide range of applications
• High-fault short circuit current ratings provide the flexibility to select any component
What does the utilisation category AC1 and AC3 mean for the TeSys contactors?
Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
Are the TeSys K contactors suitable for applications in AC4 usage?
The LC1K series is suitable up to a maximum of 440 V ac in category AC4.
Is the TeSys K range a double break pole type contactor?
Yes the TeSys K range uses linear translation movement that provides double breaking of the poles.

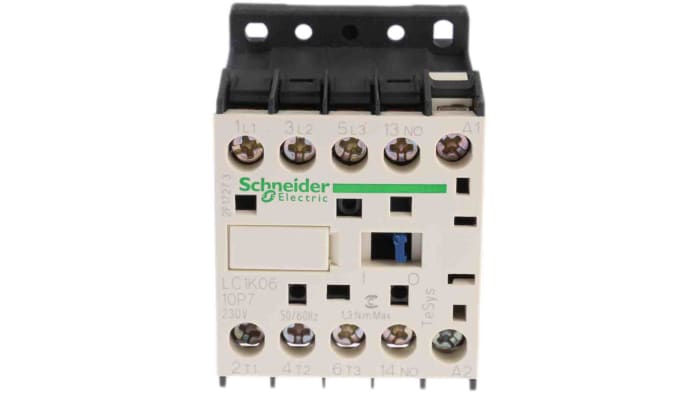

Schneider Electric LC1K0610P7 Miniature Contactor
The LC1K0610P7 is a miniature 3 pole contactor featuring a 230 V ac operating coil, an AC-3 full load current of 6 A and a normally open auxiliary contact.
- TeSys K.
- Motor Control applications.
- AC 4, AC-3 category.
- Ue Rated voltage Power circuit: 690 V AC 50/60 Hz, Signalling circuit: <= 690 V AC 50/60 Hz.
- Rated current 6 A at <= 440 V AC AC-3 for power circuit.
- Circuit Voltage 230 V ac (AV at 50/60 Hz circuit).
- 1 NO auxiliary contact.
- Overvoltage category III.
- Rated breaking capacity 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220…230 V conforming to IEC 60947, 110 A at 380…400 V conforming to IEC 60947, 70 A at 660…690 V conforming to IEC 60947.
- Plate and Rail mounting.
- IP2x conforming to VDE 0106.
- Screw Clamp Terminals.
- Weight 0.18 kg.
- Fire resistant V1 conforming to UL 94.
Approvals
UL, CSA
Standards
BS 5424 IEC 60947 NF C 63-110 VDE 0660
