Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 6 A |
| Power Rating | 2.2 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Range | TeSys K |
| Series | LC1K |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 57mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +50°C |
| Length | 58mm |

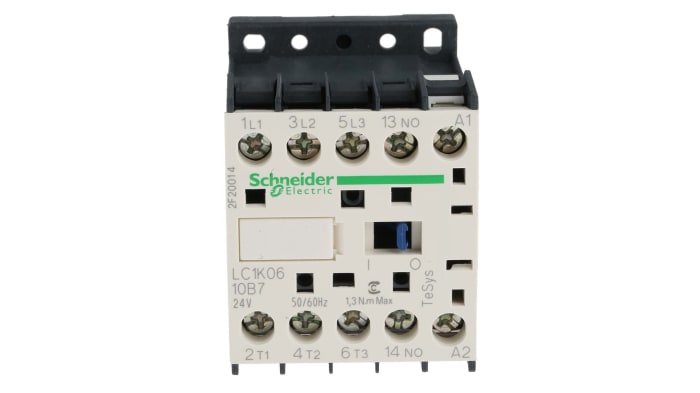

Schneider Electric LC1K0610B7 Miniature Contactor
The LC1K0610B7 is a miniature 3 pole contactor featuring a 24 V ac operating coil, an AC-3 full load current of 6 A and a normally open auxiliary contact.
Features & Benefits
• Auxiliary contacts included for improved switching capability
• IP20 (ingress protection) rated finger-safe terminals to prevent electric shocks
• Can be safely stored in harsh temperatures from -50°C to +80°C
• Standards, recycling and voltage information printed on the side of the contact for ease of use
Applications
• Squirrel-cage rotors
• Lifts, escalators or conveyors
• Compressors or pumps
• Air-conditioning units
What rate can this contactor operate at?
It has a maximum operating rate of 3,600 cycles per hour and is suitable for industrial applications in constant use.
How durable is this contactor?
This device can complete approximately 1,300,000 cycles before it needs electrical maintenance, and 10,000,000 cycles before the mechanism starts to wear down.
