Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 9 A |
| Power Rating | 4 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Series | LC2K |
| Range | TeSys K |
| Number Of Auxiliary Contacts | 1 |
| Function | Reversing |
| Auxiliary Contact Configuration | 1NC |
| Terminal Type | Screw |
| Width | 90mm |
| Depth | 57mm |
| Length | 58mm |
3 Pole Reversing Contactors with Screw Clamp Termination
Contactors have a switching voltage of 440Vac and a coil consumption (ac coils 50/60Hz rated) of 4.5VA (Hold in) and 30VA (inrush).
These are complete units, that is two ‘K’ series contactors coupled together
Incorporates mechanical interlock to ensure only one set of 3 poles are closed at any one time
- TeSys D is available as a reversing and non-reversing contactor.
- TeSys B is a bar contactor up to 900 kW.
- TeSys K contactors offered as reversing and non-reversing contactors.
- TeSys GC and GY modular contactors and DIN rail mount contactors.
Series Features.
- AC, DC, Low consumption voltage DC and silent control circuits available.
- 6 A, 9 A and 12 A current ratings available.
- 2.2 kw, 4.5 kw, 5.5 kW power applications in AC-3 and AC-4.
- Screw clamp, Faston connectors. Spring terminals, Pins for PCB (printed circuit boards) available.
Applications.
- Industry, Infrastructure, Building and many more.
- Control systems.
- Areas that are noise sensitive, disturbed mains supply, silent contactor.
- Compatible with programmable controller outputs, low consumption contactor.
- Switching / switch contactor or coil relays.
- Powering control and signalling equipment.

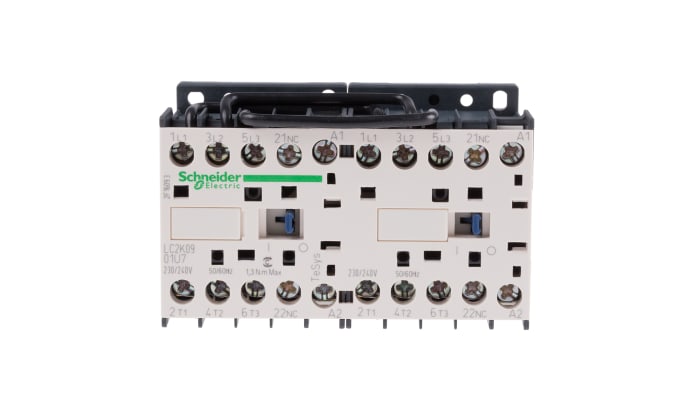

LC2K0901U7 TeSys K (LC2K) 3 Pole Reversing Contactor.
- Motor control, Resistive load applications.
- AC-4, AC-3, AC-1 Categories.
- Comes pre-assembled with a reversing power Busbar.
- Ue Rated Voltage Power circuit: 690 V AC 50/60 Hz, Signalling circuit: <= 690 V AC 50/60 Hz.
- Ie Rated current 20 A (at <= 440 V AC AC-1 for power circuit, 16 A (at <= 440 V AC AC-3 for power circuit, 9 A at <= 440 V AC AC-3 for power circuit.
- Motor Power kW 2.2 KW at 220…230 V AC 50/60 Hz, 4 KW at 380…415 V AC 50/60 Hz, 4 KW at 440 V AC 50/60 Hz, 4 KW at 480 V AC 50/60 Hz, 4 KW at 500…600 V AC 50/60 Hz, 4 KW at 660…690 V AC 50/60 Hz.
- Circuit AC at 50/60 Hz.
- Overvoltage category III.
- Breaking 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220…230 V conforming to IEC 60947, 110 A at 380…400 V conforming to IEC 60947, 70 A at 660…690 V conforming to IEC 60947.
- Mechanical interlocking.
- Screw clamp terminals.
- Mounting – DIN Rail, Plate.
- IP20 to VDE 0106.
Approvals
UL, CSA.
Standards
VDE 0660, BS 5424, IEC 60947, NF C 63-110.
