Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 4 |
| Contact Current Rating | 20 A |
| Normal State Configuration | 4NO |
| Contact Voltage Rating | 600 V ac |
| Series | LC7K |
| Range | TeSys K |
| Terminal Type | Screw |
| Width | 58mm |
| Depth | 57mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -25°C |
| Length | 45mm |

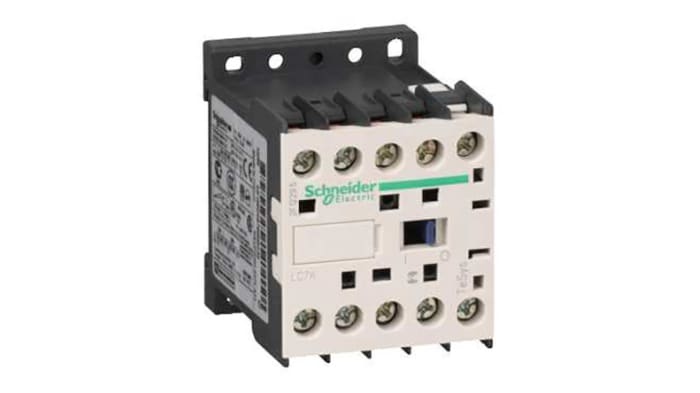

LC7-K series three-pole contactors
Silent mini-contactors for controlling AC-3 or 20 A, AC-1 motors.
Recommended for use in noise-sensitive areas, and in high-interference network environments. Coil with integrated rectifier, anti-interference.
Mounted on 35 mm DIN rail or Ø 4 mm screw pitch.
Approvals
IEC 60947; NFC 63110; VDE 0660; BS5424; UL and CSA.
Schneider Electric K Range Special Purpose
