Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 20 A |
| Power Rating | 4 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Range | TeSys K |
| Series | LP1K |
| Number Of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1NC |
| Terminal Type | Solder Pin |
| Width | 45mm |
| Depth | 57mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -25°C |
| Length | 58mm |

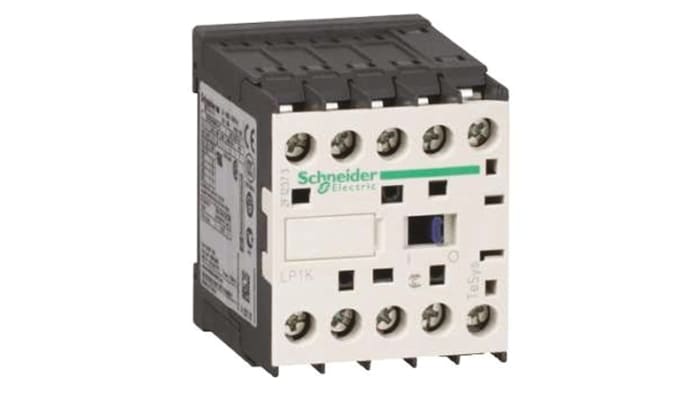

The Schneider Electric LP1K09015UD is a LP1K series 3 pole TeSys K contactor used for motor control.
Poles description 3P
Pole contact composition 3NO
Rated operational current 9 A
Control circuit voltage 250 V DC
