Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 6 A |
| Power Rating | 3 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 600 V ac |
| Series | LP4K |
| Range | TeSys K |
| Number Of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1NO |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 56.8mm |
| Length | 57.91mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +50°C |

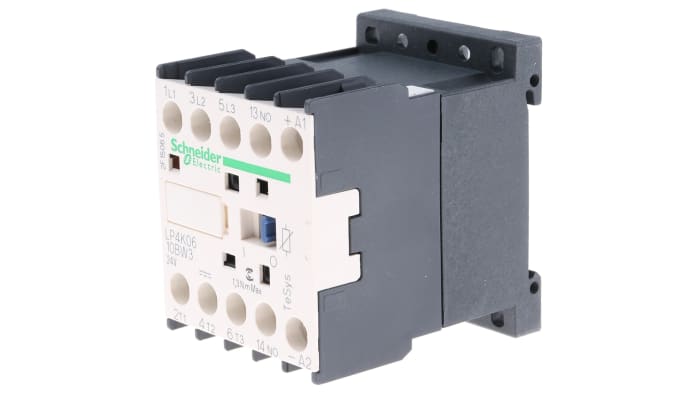

Schneider Electric LP4K0610BW3 Miniature Contactor
The LP4K0610BW3 is a miniature 3 pole low consumption contactor featuring a 24 V dc operating coil, an AC-3 full load current of 6 A and a normally open auxiliary contact.
• Compact dimensions of 58 (H) x 45 (W) x 57mm (D) make it suitable for setups with limited space
• Wide operating temperature range of -25°C to +50°C for use in demanding environments
• IP20 (ingress protection) rating indicates ability to withstand dust and objects larger than 12mm in size
• Panel or DIN rail mounting options for versatility
Applications
• Squirrel cage motors
• Industrial fans
• High and low pressure compressors
What’s the difference between an AC-3 and AC-4 duty?
AC-3 duty involves starting and stopping high inductive loads, while AC-4 duty comprises starting and stopping as well as plugging and jogging operations.
