Description
| คุณสมบัติ | Value |
| Coil Voltage | 48 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 20 A |
| Normal State Configuration | 2NO + 2NC |
| Contact Voltage Rating | 690 V ac |
| Series | LP4K |
| Range | TeSys K |
| Terminal Type | Cable |
| Width | 45mm |
| Depth | 57mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -25°C |
| Length | 58mm |

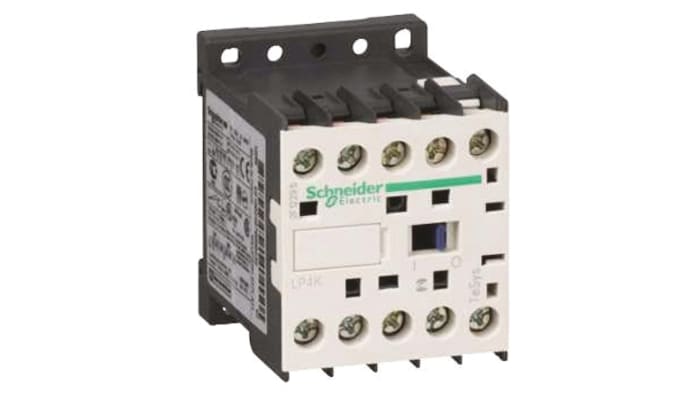

The Schneider Electric LP4K09008EW3 is a LP4K series 4 pole Tesys K contactor used for motor control.
Poles description 4P
Pole contact composition 2NO + 2 NC
Rated operational current 20 A
Control circuit voltage 48 V DC
