Description
| คุณสมบัติ | Value |
| Coil Voltage | 220 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 200 A |
| Power Rating | 75 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 300 V dc, 1000 V ac |
| Series | LC1D |
| Range | TeSys |
| Number Of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Width | 120mm |
| Depth | 136mm |
| Length | 158mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |

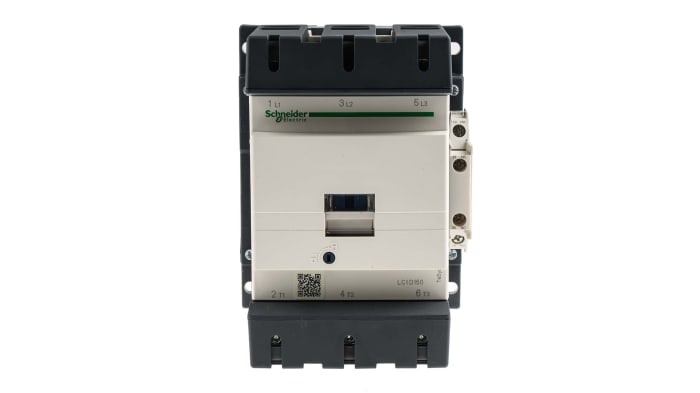

Schneider Electric 3-Pole Contactor, 75kW Power Rating, 220V AC Coil Voltage – LC1D Series – LC1D150M7
Carry out effective switching functions in your industrial control systems with this contactor from Schneider Electric. Its three-pole configuration means it can control three circuits at the same time, making this a good option for setups with limited space. Screw terminals make wire connections quick and easy, as they eliminate the need for complex tooling. With a power rating of 75kW, this contactor is built to handle high current loads, so you’ll find it used in heavy-duty motor control applications.
• Integrated fuses for effective short-circuit protection
• Light weight of 2.5kg, so it’s easy to handle and won’t strain your equipment
• DIN rail mounting is easy and tool-free
• IP20 (ingress protection) rating to withstand dust and objects larger than 12mm
Applications
• Squirrel cage motors
• Industrial chillers
• High and low pressure compressors
What’s the difference between AC-1 and AC-3 type contactors?
AC-1 contactors are designed for general purpose resistive loads while AC-3 types are built for high inductive loads such as squirrel cage motors. This unit is an AC-3 type contactor.
