Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 25 A |
| Normal State Configuration | 2NO + 2NC |
| Contact Voltage Rating | 690 V ac |
| Range | TeSys |
| Series | LC1D |
| Number Of Auxiliary Contacts | 2 |
| Function | Reversing |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Width | 99mm |
| Depth | 85mm |
| Minimum Operating Temperature | -40°C |
| Length | 45mm |
| Maximum Operating Temperature | +70°C |

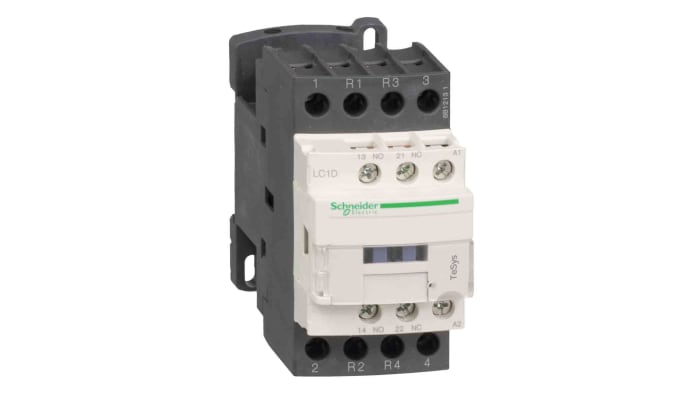

Schneider Electric 4-Pole Reversing Contactor, 24V DC Coil Voltage, 25A Current Rating – LC1D Series – LC1D1286BDS207
Choose this contactor from Schneider Electric to control the forward and reverse operation of resistive loads. Its 4-pole configuration means that this component can handle 4 circuits at the same time, making it a good choice for space efficiency. It has a 6kV rated impulse withstand voltage to let it cope with sudden power spikes without deformation. Integrated fuses provide short-circuit protection so you’re safe from electric shocks. You’ll find devices like this used in domestic and light industrial applications.
• IP20 (ingress protection) rating indicates protection from dust and objects larger than 12mm
• Low power dissipation of 1.56W per pole for energy efficiency
• Comes with a front cover for added surface protection
• Mechanical life of 30,000,000 cycles for long-term performance
• Light weight of 365g, so it’s easy to handle
Applications
• Electric furnaces
• Industrial lighting
• Heating equipment
How do I maintain this contactor?
The most important maintenance for this contactor is cleaning. Simply blow away dust with a low-pressure stream of dry air. You should also check the unit’s terminals for loose connections caused by vibration and tighten them if necessary. This can prevent sparks and overheating.
