Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 15A |
| Tripping Characteristics | Type D |
| Rated AC Voltage | 415V |
| Rated DC Voltage | 60V |
| Model Number | M9F43115 |
| Range | Multi 9 |
| Series | C60BP |
| Breaking Capacity at Maximum Voltage Rating | 20 kA |
| Circuit Breaker Type | Residential MCB |
| Mounting Style | DIN Rail Mount |
| Width | 18mm |
| Length | 103mm |
| Depth | 72mm |
| Tripping Mechanism | Thermal-Magnetic |
| Reset Actuator Type | Toggle Switch |

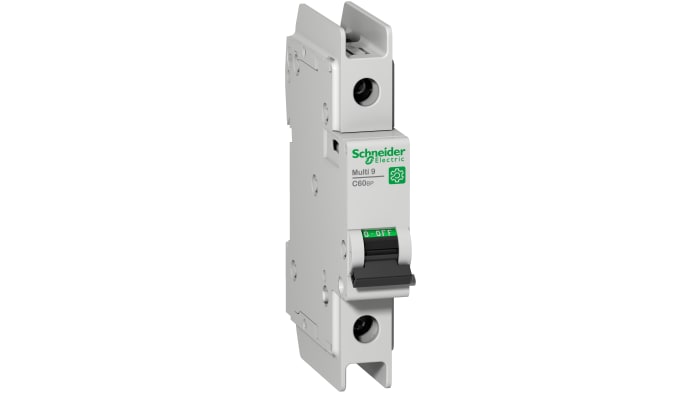

The Schneider Electric C60BP Series are multi-standard miniature circuit breakers and branch circuit protection as defined by UL 489. It has function such as tripping and electrical fault indication by the addition of auxiliaries.
Circuit protection against short-circuit currents
Circuit protection against overload currents
