Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 20A |
| Tripping Characteristics | Type Z |
| Rated AC Voltage | 415V |
| Rated DC Voltage | 60V |
| Range | Multi 9 |
| Model Number | C60BP |
| Series | M9F4 |
| Breaking Capacity at Maximum Voltage Rating | 20 kA, 3 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 18mm |
| Length | 103mm |
| Depth | 72mm |
| Tripping Mechanism | Thermal-Magnetic |
| Reset Actuator Type | Toggle Switch |

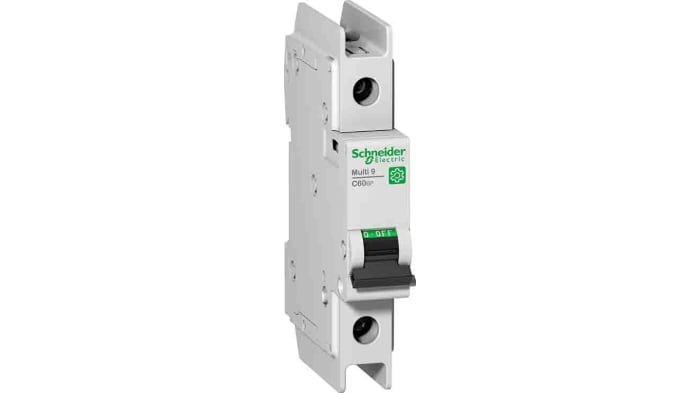

The Schneider Electric C60BP series Multi 9 Miniature circuit-breaker (MCB)- 1 Pole integrated with Thermal-magnetic tripping technology.
Green Premium product
IP degree of protection – IP20
DIN rail mounting support
