Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 10 A |
| Power Rating | 4 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 220 V dc, 690 V ac |
| Range | SIRIUS |
| Series | 3RA2315 |
| Number Of Auxiliary Contacts | 3 |
| Function | Reversing |
| Terminal Type | Screw |
| Width | 68mm |
| Depth | 73mm |
| Length | 90mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |

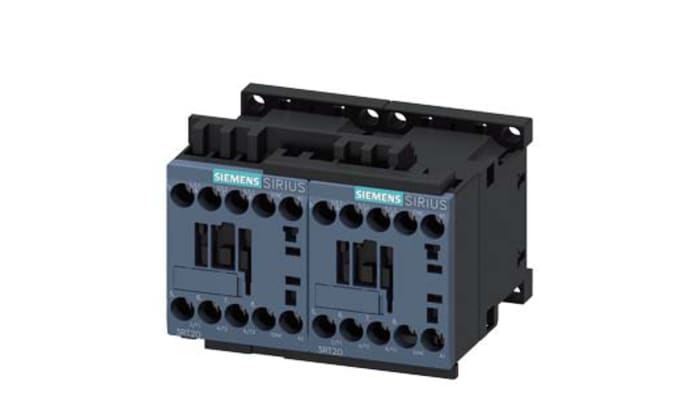

Siemens Reversing Contactor
The Siemens SIRIUS 3RA2315 series is 3-pole reversing contactor. It follows a direct-on-line starting mechanism for running a motor. This device has an electrical coil voltage rating of 230VAC and a contact voltage rating of 220VDC/690VAC. It is designed to tolerate the heavy inrush current while driving a motor.
Features and Benefits
• Electric shock resistance
• Long life of 10M switching cycles
• Operating temperature ranges between -20°C and 60°C
• Power rating is 4kW
• Screw terminal electrical and mechanical interlock
• Short circuit protection
• Size is S00
• Vibration resistant
Applications
• Electrical systems
• Factory automation
• Marine transportation
• Mechanical engineering
• Railway transportation
