Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 20 A |
| Power Rating | 5.5 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 110 V dc, 690 V ac |
| Series | 3RA2316 |
| Range | SIRIUS |
| Number Of Auxiliary Contacts | 3 |
| Function | Reversing |
| Terminal Type | Screw |
| Width | 84mm |
| Depth | 83mm |
| Minimum Operating Temperature | -25°C |
| Length | 90mm |
| Maximum Operating Temperature | +60°C |

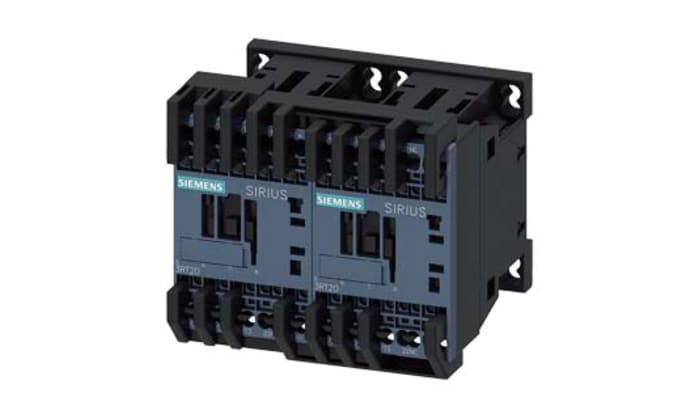

Reversing contactor assembly AC-3, 4 kW/400 V, 24 V DC 3-pole, Size S00 Spring-type terminal electrical and mechanical interlock
