Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 15 A |
| Power Rating | 32 kW |
| Normal State Configuration | 3NO |
| Range | SIRIUS |
| Function | Reversing |

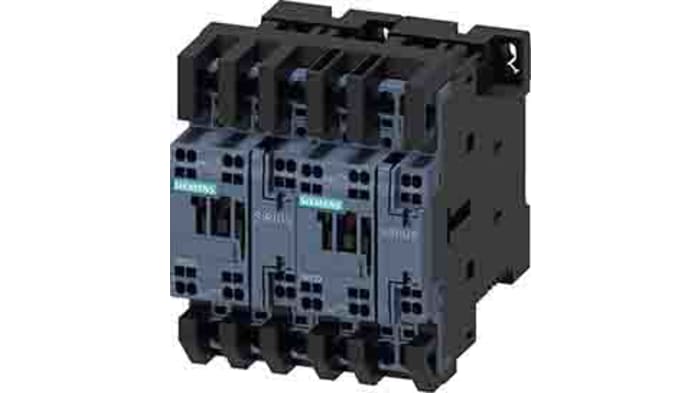

The Siemens 3RA23 series is reversing contactor assembly AC-3, 15 kW/400 V, 24 V DC 3-pole, is a proven and factory-fitted combination of two 3RT2 contactors of the same output which are already fully wired and are interlocked both mechanically and electrically. They are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. The 3RA23 reversing contactor assemblies are available with AC and DC actuation in sizes S00 to S3. They are offered with screw or spring-loaded terminals for mounting on DIN rails or screw mounting. It has size S0, Spring-type terminal electrical and mechanical interlock 2 NO Reversing contactor assembly for switching motors including change of rotation direction.
The 3RA23 reversing contactor assemblies will replace the proven 3RA13 series.
Simple, efficient and always up to date – SIRIUS modular system.

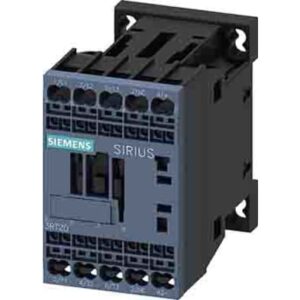

The accessories of the 3RT2Â contactors are standard for all sizes and can also be used for the contactor assemblies.
