Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 38 A |
| Power Rating | 18.5 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 400 V ac |
| Series | 3RA |
| Range | SIRIUS Innovation |
| Function | Reversing |
| Terminal Type | Screw |
| Width | 101mm |
| Depth | 107mm |
| Length | 90mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |

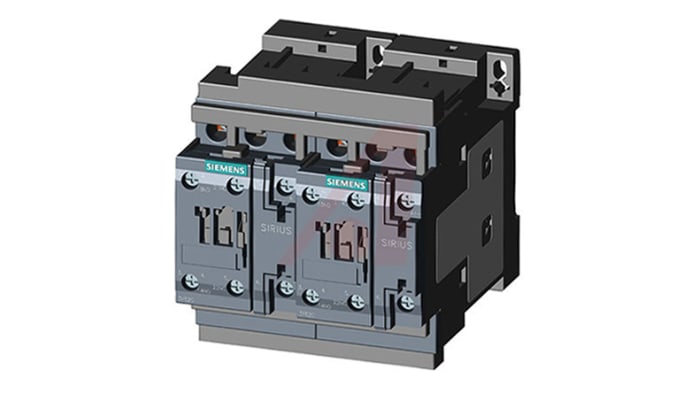

Contactors – 3RA23 Range
The Siemens fully wired reversing contactor assemblies are suitable for use in any climate. The 3RA23 contactor assemblies have screw terminals (main and control circuits) and are suitable for screwing or snapping onto TH 35 standard mounting rails. All models are highly reliable and of extremely good quality.
Current rating and voltage will vary among the range.
