Description
| คุณสมบัติ | Value |
| Coil Voltage | 72-125 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 10 A |
| Normal State Configuration | 2NO + 2NC |
| Range | SIRIUS |

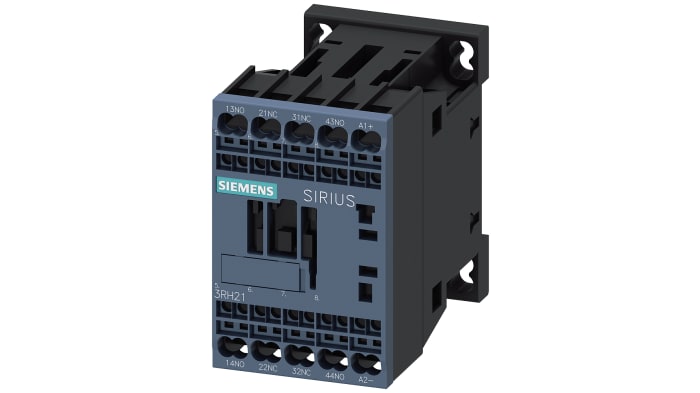

The Siemens contactor relay with 2 NO + 2 NC contact , 110 V DC voltage and size S00. It has spring type terminal suitable for PLC outputs Contactor relay for railway applications SIRIUS 3RH2 for switching the control signals with large control voltage fluctuations under extreme conditions, e.g. for railway applications. The SIRIUS 3RH2 coupling contactor relays have standard-compliant terminal designations and a reliable and time-saving connection technology. Thanks to the multiplication of outputs, simultaneous switching of several auxiliary circuits is possible. The contacts are available with positively driven operation for safety applications as well as SUVA versions. The coupling contactor relays are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals.
High reliability
Simple
Efficient
