Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 12 A |
| Power Rating | 5.5 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 400 V ac |
| Range | SIRIUS Innovation |
| Series | 3RT2 |
| Number Of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1NO |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 73mm |
| Length | 57.5mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
Contactors – 3RT2 Range
The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW
Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2
Note
Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.
Approvals
CE, UL, CSA, CCC

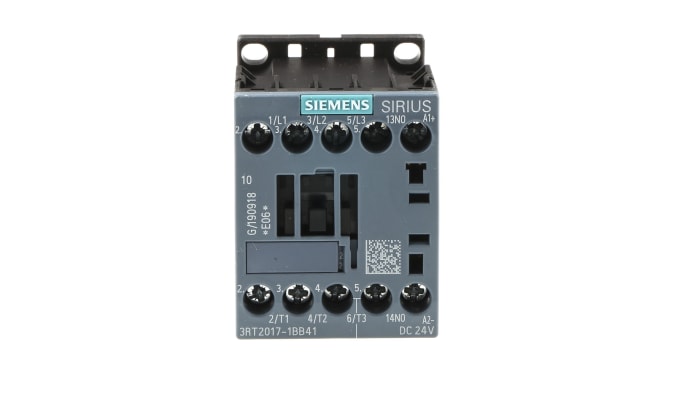

Siemens SIRIUS Innovation 3-Pole Contactor, 5.5kW, 12A – 3RT2 Series – 3RT2017-1BB41
Use this robust contactor from Siemens’ SIRIUS Innovation range to control and protect industrial motors. It has three normally open (NO) contacts that are energised when a current passes through them. This triggers the safe starting of the motor. The electromechanical device also has an auxiliary contact that triggers a power cutoff when a surge current passes through it, protecting the attached motor from damage. With a surge voltage rating of 6kV, this contactor can handle sudden voltage spikes to enhance electrical safety. It has a tough thermoplastic housing that’s durable and impact-resistant, so you can use it in harsh industrial environments. Units like this one are commonly found in compressors and air-conditioning systems.
• Power rating of 5.5kW makes it suitable for heavy-duty industrial applications
• Compact dimensions of 57.5 (length) x 45 (width) x 73mm (depth) for space efficiency in small enclosures
• Broad operating temperature range of -25°C to +60°C for use in demanding environments
• Mechanical service life of 30 million operations for reliable long-term performance
How do I mount this contactor?
You can mount this contactor by simply snapping it onto a DIN rail. This is a quick and simple process that doesn’t need any tools.
