Description
| คุณสมบัติ | Value |
| Coil Voltage | 48 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 17 A |
| Power Rating | 7.5 kW |
| Normal State Configuration | 1NC + 1NO |
| Range | SIRIUS |
| Function | Reversing |

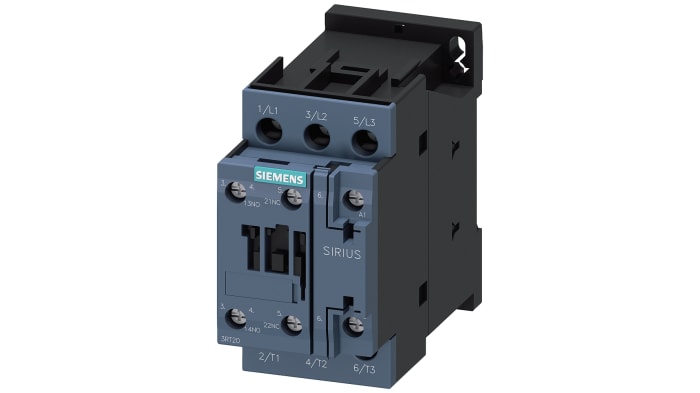

The Siemens SIRIUS 3RT2 series is a power contactor for switching motors. It has a size of S0. It has power rating of 7.5 kW. The type of electrical connection for main current circuit and for auxiliary and control current circuit is through screw-type terminal. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application direct or via PLC input. The contactor are climate-resistant and approved for worldwide use e.g. IEC and UL/CSA.
Mounting type is screw and Snap-On mounting
Ambient operating temperature is -25 to +60 °C
