Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 95 A |
| Power Rating | 45 kW |
| Normal State Configuration | 1NC + 1NO |
| Range | SIRIUS |
| Function | Reversing |

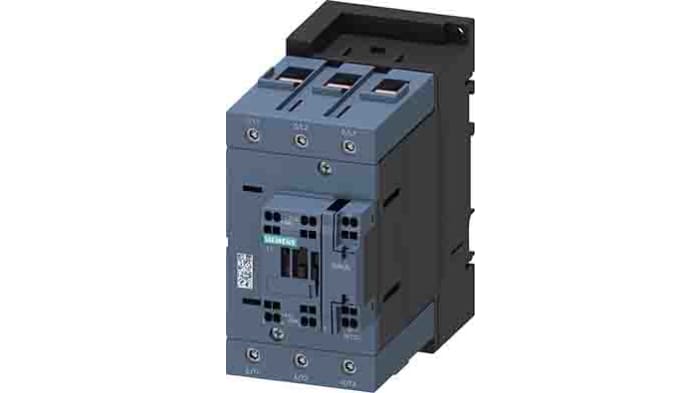

The Siemens SIRIUS 3RT2 series is a power contactor for switching motors. It has a size of S3. It has power rating of 45 kW. The type of electrical connection for main current circuit and for auxiliary and control current circuit is through spring terminal. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application direct or via PLC input. The contactor are climate-resistant and approved for worldwide use e.g. IEC and UL/CSA.
Mounting type is screw and Snap-On mounting
Ambient operating temperature is -25 to +60 °C
