Description
| คุณสมบัติ | Value |
| Coil Voltage | 220 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 22 A |
| Power Rating | 5.5 kW |
| Normal State Configuration | 2NC + 2NO |
| Range | SIRIUS |
| Function | Reversing |

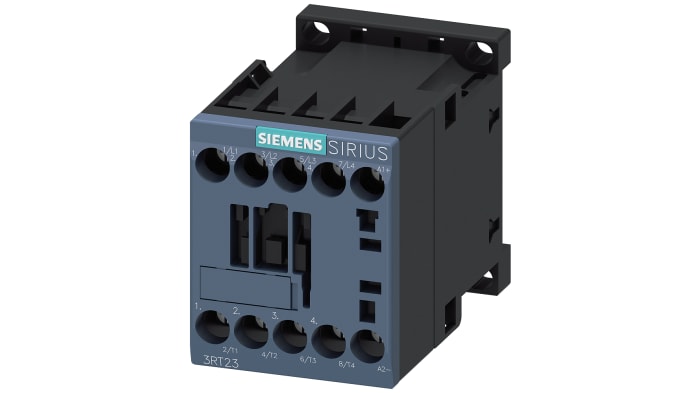

The Siemens SIRIUS 3RT2 series is a contactor for switching motors. It has a size of S00. The type of electrical connection for main current circuit and for auxiliary and control current circuit is through screw terminal. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application direct or via PLC input. The contactor are climate-resistant and approved for worldwide use e.g. IEC and UL/CSA.
Mounting type is screw and Snap-On mounting
Ambient operating temperature is -25 to +60 °C
