Description
| คุณสมบัติ | Value |
| Coil Voltage | 220 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 35 A |
| Power Rating | 7.5 kW |
| Normal State Configuration | 1 NO + 1 NC |
| Range | SIRIUS |
| Series | 3RT2 |

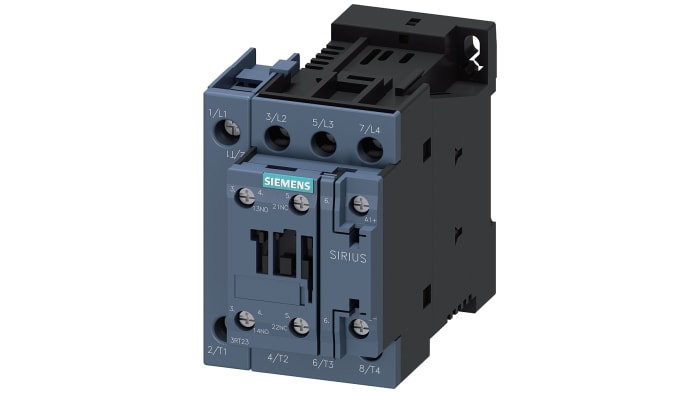

The Siemens contactor has screw and Snap-On mounting onto 35 mm standard mounting rail according to DIN EN 60715. +/-180° rotation is possible on vertical mounting surface and can be tilted forward and backward by +/- 22.5° on vertical mounting surface. It has ambient temperature range from -25 to +60 °C during operation and -55 to +80 °C during storage.
Type of Electrical Connection: Screw type Terminal
S0 sized contactor
IP20 rated on the front according to IEC 60529
Finger-safe, for vertical contact from the front
