Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 15.5 A |
| Power Rating | 7.5 kW |
| Normal State Configuration | 4NO |
| Contact Voltage Rating | 690 V ac |
| Series | 3RT2 |
| Range | SIRIUS Innovation |
| Number Of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Width | 85mm |
| Depth | 107mm |
| Minimum Operating Temperature | -25°C |
| Length | 61mm |
| Maximum Operating Temperature | +60°C |

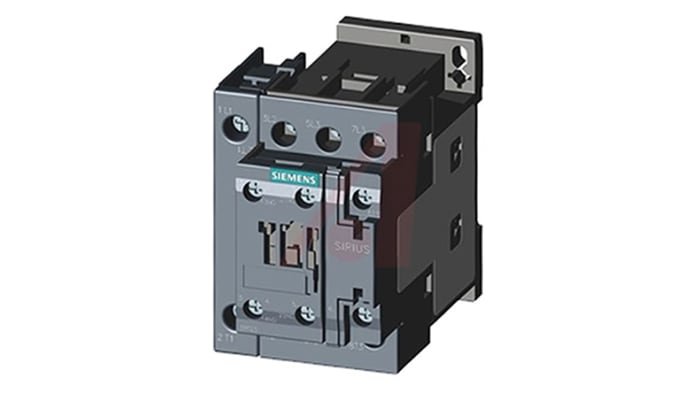

Contactors – 3RT Range, Screw Connections
The 3RT Range of Siemens Contactors. All models are highly reliable and extremely good quality.
Features and Benefits
Screw Connection
All models vary with Current rating and Voltage.
Various NO/NC Values
Siemens Sirius Range Contactor & Control Relays
