Description
| คุณสมบัติ | Value |
| Coil Voltage | 132 V |
| Number of Poles | 3 |
| Contact Current Rating | 630 A |
| Power Rating | 335 kW |
| Normal State Configuration | 4NO + 4NC |
| Range | SIRIUS Innovation |

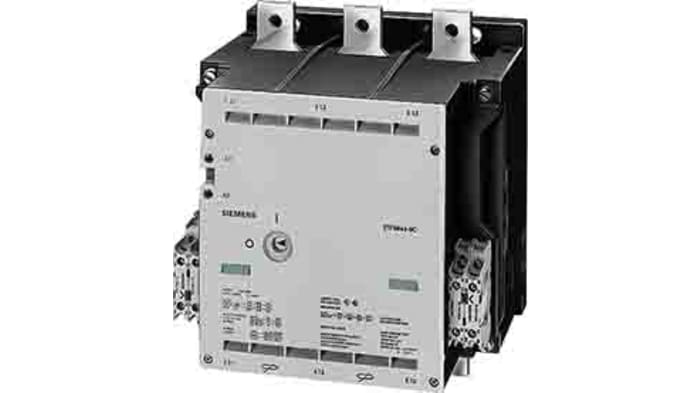

The Siemens 3TC series is a contactor, size 14,3 pole, with auxiliary contacts 4 NO + 4 NC,) AC operation 110…132 V AC 50/60 Hz Vacuum contactor 3TF6 for switching motors. The 3TF6 vacuum contactors offer convincing high performance from a compact design with high contact reliability. They are also characterized by their particularly long switching endurance. They are therefore particularly well suited to frequent switching in inching operation. Pre-installed auxiliary switches reduce the complexity of your design. The devices are approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in two sizes, with AC and DC operation, and in a wide performance range
The devices can be connected in the main circuit by means of rails
A wide range of accessories is available for these contactors, such as surge suppressors, auxiliary switches or terminal covers
