Description
| คุณสมบัติ | Value |
| Coil Voltage | 110 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 8.4 A |
| Power Rating | 4 kW |
| Normal State Configuration | 4NO |
| Range | SIRIUS Innovation |

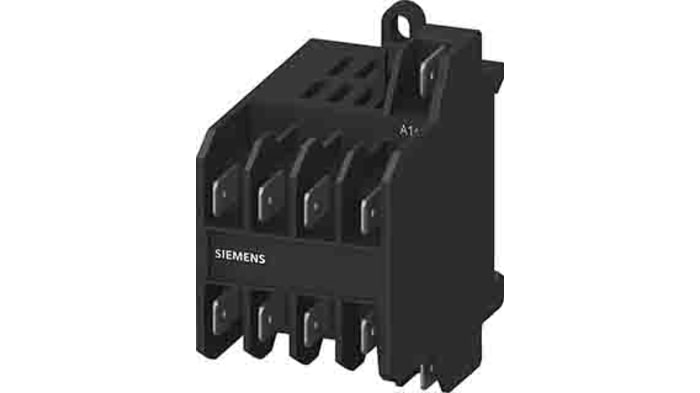

The Siemens 3TG series is a power relay with, AC-3 8.4 A, 4 kW / 400 V 4 NO, 110 V AC, 45…450 Hz frequency. The 3TG series power relay is a 3-pole relay with screw type terminal assembly, with flat connector terminal 6.3 x 0.88mm.
It can withstand an operating ambient temperature of -25 to +55 °C
It has protection class IP rating of IP05
