Description
| คุณสมบัติ | Value |
| Number of Poles | 3P |
| Current Rating | 6A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 60V |
| Series | 5SJ4 |
| Range | SENTRON |
| Model Number | 5SJ4306-7HG42 |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 54mm |
| Length | 121mm |
| Depth | 76mm |

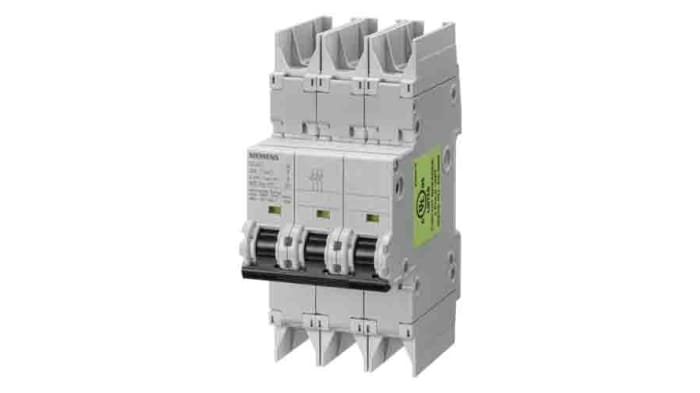

The Siemens 5SJ4306-7HG42 Miniature Circuit Breakers operate at 277 V and 6A, at AC. It has a breaking capacity of 10 kA at AC. They are designed for branch circuit protection and feeder applications and are UL listed.
Tripping characteristic class-C.
Number of poles-3
