Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 500mA |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230V |
| Rated DC Voltage | 72V |
| Series | 5SL4 |
| Range | SENTRON |
| Model Number | 5SL4505-7 |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 76mm |
| Length | 36mm |
| Depth | 90mm |
| Terminal Contact Type | Screw |

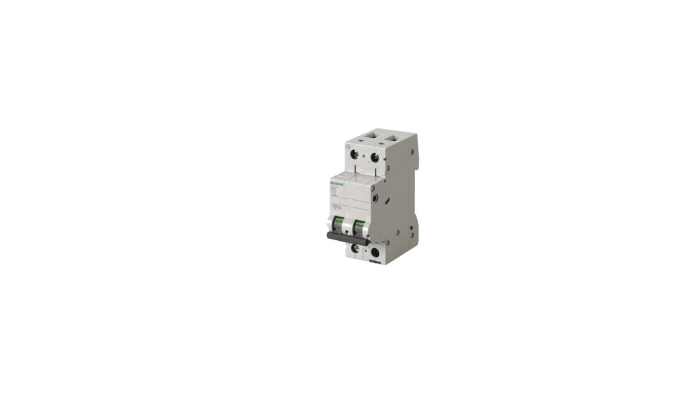

The Siemens 5SL4505-7 Miniature Circuit Breakers operate at 72 V at DC and 0.5 A at AC. It has a switching capacity of 10 kA. It protects electrical systems against overload and short circuits. These are suitable for the quick and easy mounting of additional components such as arc fault detection devices, auxiliary switches, fault signal contacts, shunt trips and under voltage releases.
Tripping characteristic class-C.
Number of poles-2
