Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 80A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 400V |
| Range | SENTRON |
| Model Number | 5SP4180-7 |
| Series | 5SP4 |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 27mm |
| Length | 90mm |
| Depth | 76mm |
| Terminal Contact Type | Screw |

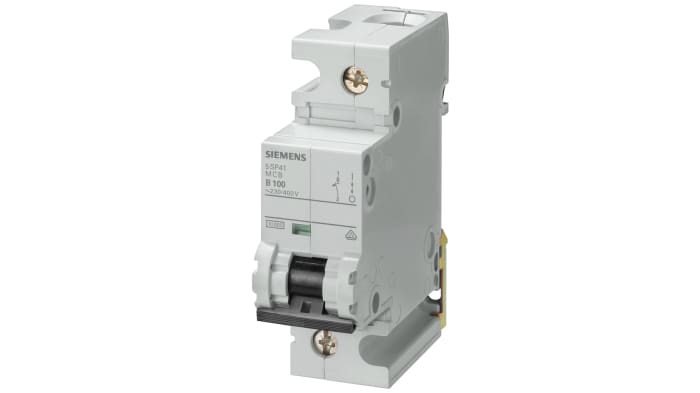

The Siemens SENTRON series miniature circuit breaker has a single pole and has a current breaking capacity of 10kA. In the event of an overload or short-circuit this miniature circuit breakers safely cut off the connected circuit and reliably protect electrical installations and equipment from damage. The device have a uniform design and, with the appropriate accessories, can be expanded by many additional functions.
Type C Tripping characteristic
simple to mount and install
