Description
| คุณสมบัติ | Value |
| Number of Poles | 4P |
| Current Rating | 80A |
| Tripping Characteristics | Type B |
| Rated AC Voltage | 400V |
| Range | SENTRON |

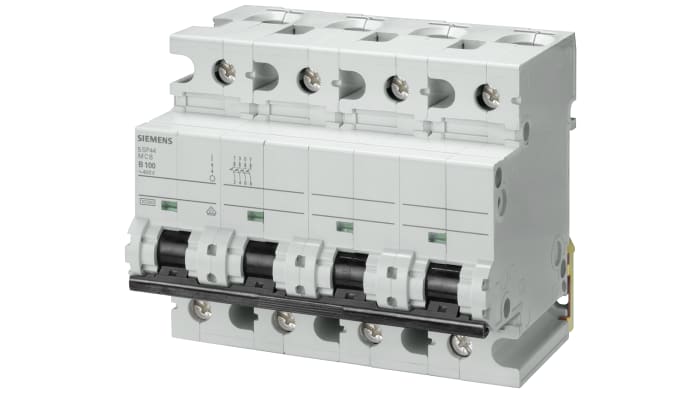

| Model Number | 5SP4480-6 |
| Series | 5SP4 |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 108mm |
| Length | 90mm |
| Depth | 76mm |
| Terminal Contact Type | Screw |
The Siemens 5SP4 series four-pole miniature circuit breaker has a current rating of 80 A and 10 kA breaking capacity. The miniature circuit breaker is the fuse for short-circuit protection. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Protection class IP= IP20 with connected conductors, IP40 in the area of the handle with distribution cover
halogen-free, sealable, silicon-free
Supply voltage= 400 Vac
