Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 40A |
| Tripping Characteristics | Type B |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 440V |
| Range | SENTRON |
| Model Number | 5SY5240-6 |
| Series | 5SY5 |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 36mm |
| Length | 90mm |
| Depth | 76mm |
| Terminal Contact Type | Screw |

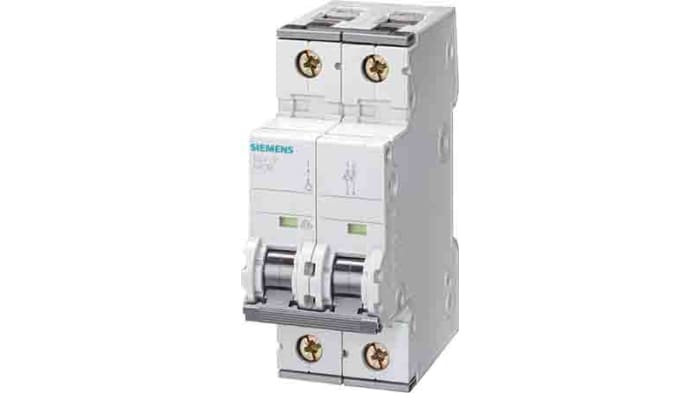

The Siemens 5SY5 series two-pole miniature circuit breaker has a current rating of 40 A and 10 kA breaking capacity. The miniature circuit breaker is the fuse for short-circuit protection. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Protection class IP= IP20, with connected conductors
halogen-free, silicon-free, sealable
Supply voltage= 400 Vac
