Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 20A |
| Tripping Characteristics | Type B |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 72V |
| Series | 5SY6 |
| Range | SENTRON |
| Model Number | 5SY6220 |
| Breaking Capacity at Maximum Voltage Rating | 5 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 36mm |
| Length | 90mm |
| Depth | 76mm |
| Terminal Contact Type | Screw |

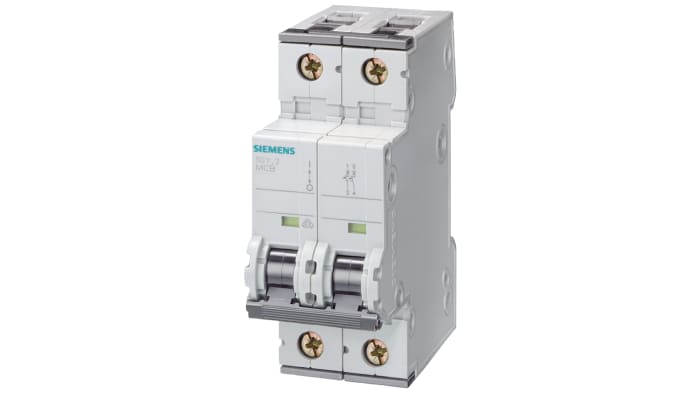

The Siemens 5S series Miniature Circuit Breaker is used as a fuse for short-circuit protection. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Halogen-free
Sealable
Silicon-free
