Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 32A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230 V, 400V |
| Range | Sentron |
| Series | 5SY7 |
| Breaking Capacity at Maximum Voltage Rating | 15 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 17.5mm |
| Length | 89.8mm |
| Depth | 76mm |

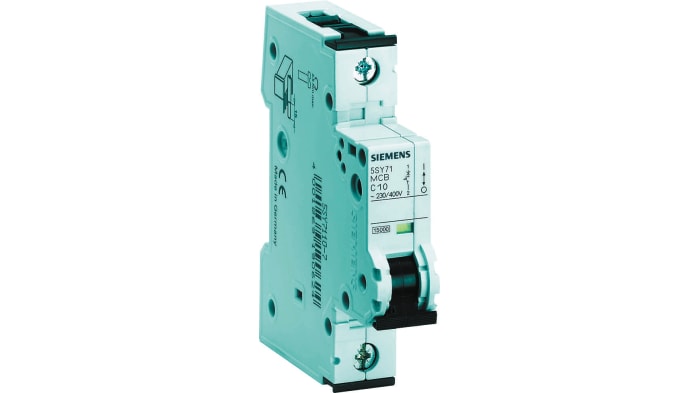

Automatic cut-out, 5SY7 Series, 15 kA, C characteristic
Automatic Cut-Out, 1-Pole and 3-Pole
DIN rail assembly
For use in industry and in the functional sector
Standards
EN 60898 / IEC 60898-2
Approvals
DIN VDE 0641 Part 11, UL 1077, CSA 22.2
