Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24V dc |
| Output Current | 10A |
| Power Rating | 240W |
| Number of Outputs | 1 |
| Electrical Phase | 1, 2 |
| Type | Switch Mode |
| Height | 125mm |
| Output Voltage Adjustment Range | 24 → 28.8V |
| Depth | 121mm |
| Width | 121mm |
| Mounting Type | DIN Rail Mount |
| Hazardous Area Certification | ATEX |
| Series | SITOP PSU200M |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
| Ripple And Noise | 50mV Pk-Pk |
| Load Regulation | 0.1% |

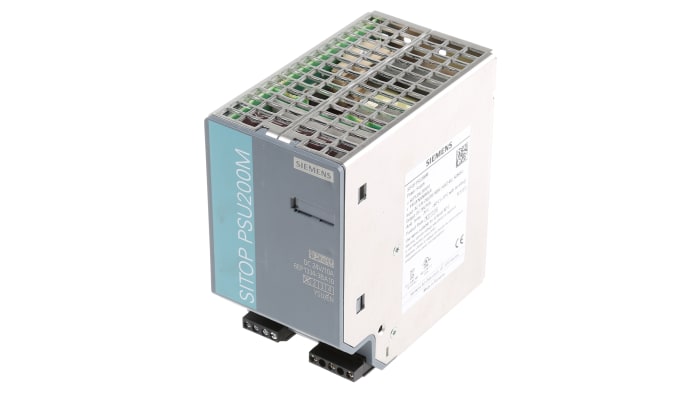

Siemens Switch-Mode DIN Rail Power Supply, 240W Power Rating, 10A Output Current – SITOP PSU200M Series – 6EP1334-3BA10
Convert electrical power from AC to DC with this DIN rail mount power supply from Siemens. It has a wide input voltage range from 85 to 264V AC, making it a reliable choice for applications where high voltage fluctuation is likely. The device has an efficiency rating of 91%, which means it minimises power wastage. In the event of an overload, you can choose between constant current with automatic restart or latching disconnection for versatility. With dimensions of 125 (H) x 70 (W) x 121mm (D), it’s ideal for use in busy setups.
• Power-boost function increases the nominal current by up to three times
• Simply clips onto a DIN rail mount for quick and easy installation
• Ripple factor and noise are less than 50mV (millivolts), so it won’t interfere with other equipment
• Adjustable output voltage between 24 to 28.8V, so you can configure it to your specific needs
Can I install this unit next to other similar units?
Yes, you can mount many similar devices next to each other using the DIN rail mounting system. This lets you organise your electrics effectively and reduces the amount of cabling required.
