Description
| คุณสมบัติ | Value |
| AC or DC Output Voltage | dc |
| Input Voltage | 230V ac |
| Output Voltage | 5V dc |
| Output Current | 6.3A |
| Power Rating | 31.5W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Depth | 53mm |
| Series | LOGO!POWER |
| Hazardous Area Certification | ATEX |
| Mounting Type | DIN Rail Mount |
| Width | 54mm |
| Standards Met | CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950 |
| Output Voltage Adjustment Range | 4.6 → 5.4V |
| Maximum Temperature | +70°C |
| Special Features | Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio |
| Load Regulation | 0.1% |
| MTBF | 2654280h |
| Ripple And Noise | 100 (Ripple)mV Pk-Pk |
| Efficiency | 80% |
| Minimum Temperature | -25°C |

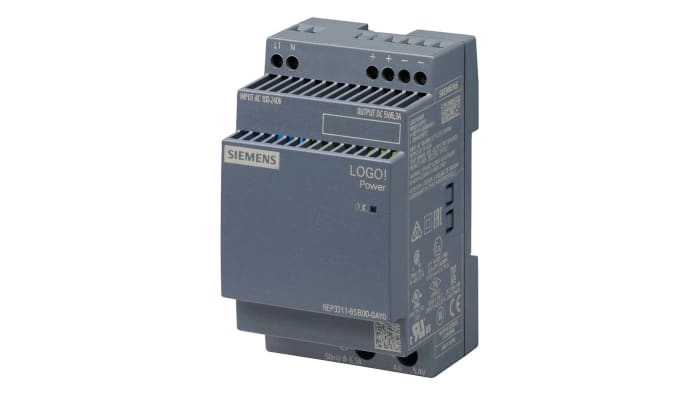

Siemens Switch Mode DIN Rail Power Supply, 5V DC Output, 31.5W Power Rating – LOGO!POWER Series – 6EP3311-6SB00-0AY0
Keep your applications performing at their best by installing this switch mode DIN rail power supply from Siemens. It weighs just 200g and has compact dimensions of 54 (W) x 90 (H) x 53mm (D), making it an ideal power solution for small spaces. High efficiency across the entire load range and low-power loss in the no-load operation state ensure optimal performance. The wide scope of input for single-phase supply systems lets you use this device in applications such as server rooms and automated equipment.
• Load regulation of 0.1% ensures the delivery of stable voltage through the circuit
• Broad operating temperature range of -25°C to +70°C for use in demanding environments
• DIN rail mounting capability offers space-efficiency and tidy organisation
• Flat stepped housing design makes it easy to fully integrate the power supply in enclosures like distribution boards
What should I consider when buying a DIN rail power supply?
You should consider the DIN rail size and match it to your enclosure. It’s also important to get a power supply with short circuit and overload protection, which will disconnect if there’s a problem to prevent damage and production downtimes.
