Description
| คุณสมบัติ | Value |
| AC or DC Output Voltage | dc |
| Input Voltage | 230V ac |
| Output Voltage | 15V dc |
| Output Current | 1.9A |
| Power Rating | 28.5W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Hazardous Area Certification | ATEX |
| Series | LOGO!POWER |
| Standards Met | CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950 |
| Output Voltage Adjustment Range | 10.5 → 16.1V |
| Depth | 53mm |
| Mounting Type | DIN Rail Mount |
| Width | 36mm |
| Efficiency | 83% |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| Load Regulation | 0.1% |
| MTBF | 2938542h |
| Ripple And Noise | 200 (Ripple)mV Pk-Pk |
| Special Features | Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio |

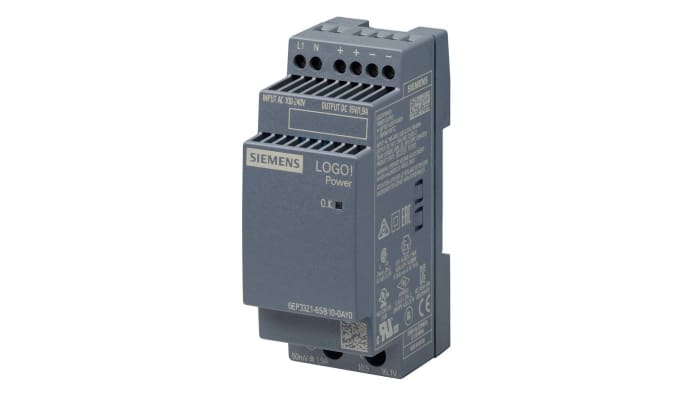

Siemens Switch-Mode DIN Rail Power Supply, 15V DC Output, 28.5W Power Rating – LOGO!POWER Series – 6EP3321-6SB10-0AY0
This Siemens switch-mode DIN rail power supply delivers secure and reliable power to industrial, domestic and commercial applications. It’s a heavy-duty and durable component that operates in temperatures between -25°C and +70°C, so you can confidently use it in harsh environments like hot and humid industrial kitchens. It converts an input of 230V to 15V DC (direct current) to deliver reliable performance. A unique flat and stepped design makes the unit highly flexible and compatible with enclosures like distribution boards. You can use it to power a wide variety of DC-operated devices like sensors, motors and actuators.
• Overload and short-circuit protection ensure the device enters a regulation state or cuts off when voltage differences increase or spike
• High efficiency of up to 90% to minimise power use
• Design allows for simple output current measuring without disconnecting the cable
Do AC/DC converters need additional fuses?
All AC/DC converters, like this one from Siemens, have built-in fuses, so you won’t need additional fuses for external protection.
