Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 12V dc |
| Output Current | 2A |
| Power Rating | 24W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 100mm |
| Depth | 88mm |
| Width | 25mm |
| Mounting Type | DIN Rail Mount |
| Series | SITOP PSU6200 |
| Standards Met | cCSAus (CSA C22.2 No. 60950-1, UL 60950-1), CE Certified, cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259, EN 55022 Class B, EN 61000-3-2, EN 61000-6-2 |
| Output Voltage Adjustment Range | 10.5 → 12.9V |
| Ripple And Noise | 30mV |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
| Special Features | LED Display |
| Efficiency | 83.3% |

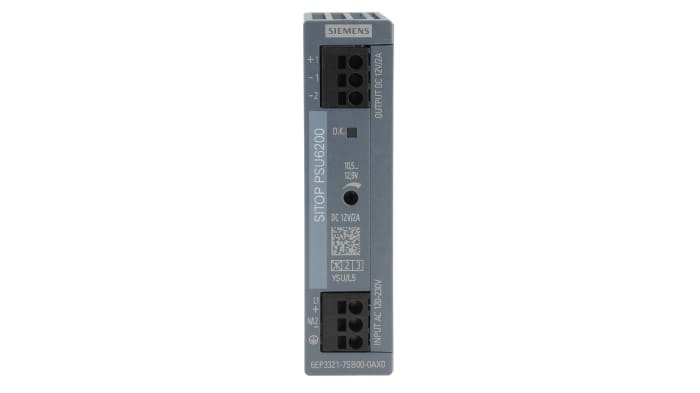

Siemens Switch-Mode DIN Rail Power Supply, 12V DC Output, 24W Power Rating – SITOP PSU6200 Series – 6EP3321-7SB00-0AX0
Ensure the efficient running of your equipment with this switch-mode DIN rail power supply from Siemens. It’s a one-phase mini electric power converter that’s ideal for low-performance-range applications. The unit has a wide scope of AC (alternating current) inputs from 85 to 264V and a maximum output voltage of 12V DC (direct current), which enables plug-in terminals to easily support electrical connections. Power losses are very low, even when the power supply is idle, which makes it perfect for machinery and plants that are often in standby modes. You can use this unit for applications like ITE (information technology equipment), control boxes and small control cabinets.
• Compact dimensions of 25 (W) x 100 (H) x 88mm (D) for easy installation in confined spaces
• Operating temperature range of -25°C to +70°C for use in heavy-duty indoor and outdoor environments
• Short-circuit protection prevents damage to the unit and other equipment by regulating incoming and outgoing voltage differences
How can I see if this power supply is working or not?
This switch mode power supply from Siemens has an LED (light-emitting diode) status indicator, so it’s easy to determine the status of the device and respond to any possible faults.
