Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 230V ac |
| Output Voltage | 12V dc |
| Output Current | 4.5A |
| Power Rating | 54W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Output Voltage Adjustment Range | 10.5 → 16.1V |
| Mounting Type | DIN Rail Mount |
| Depth | 53mm |
| Width | 54mm |
| Hazardous Area Certification | ATEX |
| Series | LOGO!POWER |
| Standards Met | CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950 |
| MTBF | 2566680h |
| Ripple And Noise | 200 (Ripple)mV Pk-Pk |
| Efficiency | 87.1% |
| Maximum Temperature | +70°C |
| Load Regulation | 0.1% |
| Special Features | Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio |
| Minimum Temperature | -25°C |

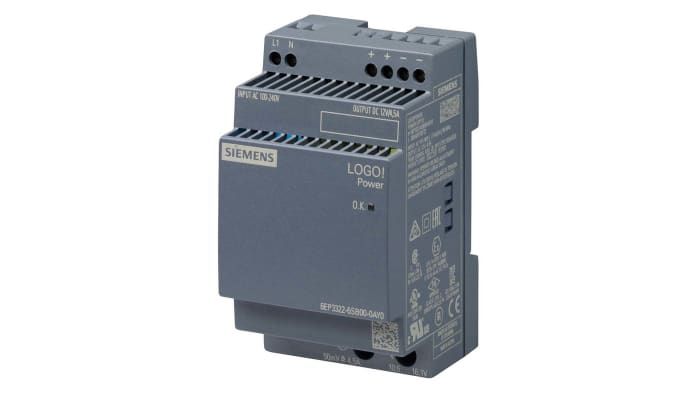

Siemens Switch-Mode Power Supply, 230V AC, 12V DC – LOGO!POWER Series – 6EP3322-6SB00-0AY0
Efficiently transfer power from an alternating current source to a direct current load with this switch-mode power supply from Siemens. It provides a high degree of productivity across an entire load range and is suited to single-phase supply systems and DC (direct current) networks. The miniature unit is designed for use in tight spaces and features a flat, stepped profile that’s simple to integrate into your distribution board. Its flexible installation options allow for DIN rail, distribution board or direct wall mounting, so you can set it up according to your needs.
• MTBF (mean time between failures) of 2,566,680h for long-lasting performance
• Compact dimensions of 90 (height) x 54 (width) x 53mm (depth) for use in tight spaces
• Wide operating temperature range of -25°C to +70°C for use in demanding environments
How do you measure the current of this switch-mode power supply?
The device allows for the simple measurement of current using a voltmeter, which means there’s no need to disconnect cables. This allows for current measurement without interrupting the supply of direct voltage to the system.
