Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 12V dc |
| Output Current | 12A |
| Power Rating | 144W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 135mm |
| Standards Met | cCSAus (CSA C22.2 No. 60950-1, UL 60950-1), CE Certified, cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259, EN 55022 Class B, EN 61000-3-2, EN 61000-6-2 |
| Series | SITOP PSU6200 |
| Output Voltage Adjustment Range | 12 to 15.5V |
| Depth | 125mm |
| Width | 45mm |
| Mounting Type | DIN Rail Mount |
| Efficiency | 89.3% |
| Minimum Temperature | -25°C |
| Special Features | LED Display |
| Ripple And Noise | 30mV |
| Maximum Temperature | +70°C |

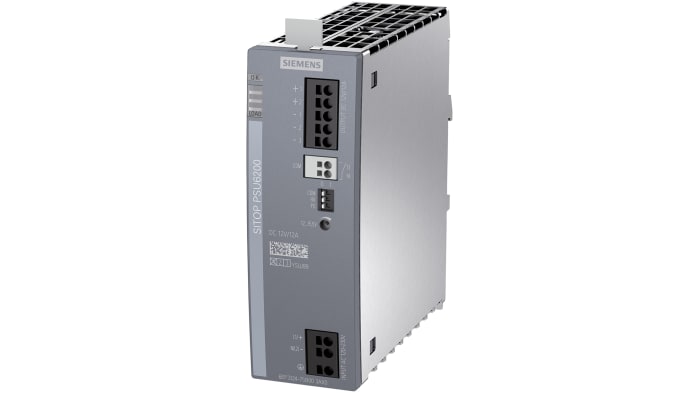

Siemens Switch-Mode DIN Rail Power Supply, 12V DC Output, 144W Power Rating – SITOP PSU6200 Series – 6EP3324-7SB00-3AX0
Use this robust power supply unit from Siemens to energise your DIN rail mounted components in industrial environments. It works by converting an unstabilised input voltage into the current, voltage and frequency that your equipment needs. For safety, it shuts down and attempts to restart when a short circuit occurs, which protects connected components from damage. Installation is easy as the push-in terminals and DIN rail mounting features don’t call for complex tooling. An adjustable output range makes this a versatile solution for applications including single-phase devices like alarm systems and relays.
• Compact dimensions of 45 (W) x 125 (D) x 135mm (H) fit into confined spaces
• Wide operating temperature range of -25°C to +70°C for use in demanding conditions
• Efficiency of 89.3% for optimal performance
• IP20 (ingress protection) rating to withstand dust and objects larger than 12mm in size
How do I know that this unit is running?
This device has an LED (light-emitting diode) status indicator that shows when it’s supplying a 24V output.
