Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24V dc |
| Output Current | 5A |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 135mm |
| Series | SITOP PSU6200 |
| Width | 35mm |
| Mounting Type | DIN Rail Mount |
| Standards Met | cCSAus (CSA C22.2 No. 60950-1, UL 60950-1), CE Certified, cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259, EN 55022 Class B, EN 61000-3-2, EN 61000-6-2 |
| Depth | 125mm |
| Output Voltage Adjustment Range | 24 → 28V |
| Ripple And Noise | 30mV |
| Maximum Temperature | +70°C |
| Special Features | LED Display |
| Efficiency | 90.2% |
| Minimum Temperature | -25°C |

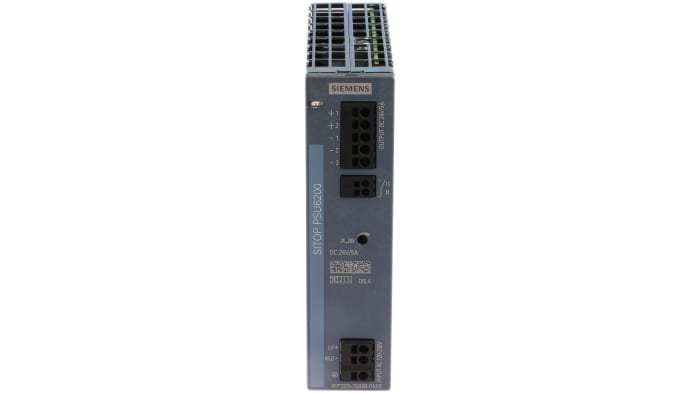

Siemens Switch-Mode DIN Rail Power Supply, 120W Power Rating, 5A Output Current – SITOP PSU6200 Series – 6EP3333-7SB00-0AX0
Distribute electrical energy to DIN rail connected network devices with this power supply unit (PSU) from Siemens. The device is designed to regulate and send power to single-phase electrical components on your network. Its wide input voltage range of 85 to 264V AC means it can handle substantial power fluctuations without being damaged. It also has an Extra-Power feature that supplies up to 150% of the rated current for short periods to keep your devices running when the current supply is faulty. This PSU makes good use of the energy it receives and has an efficiency of 90.2%. Its compact dimensions of 35 (width) x 125 (depth) x 135mm (height) make it a space-efficient solution for small enclosures.
• Output current of 5A for energy efficiency
• Green LED status indicator allows for troubleshooting at a glance
• Wide operating temperature range of -25°C to +70°C for use in demanding environments
How does this PSU react to short-circuits?
During a short-circuit fault, this PSU shuts down and makes periodic restart attempts in order to protect the devices connected to it.
