Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 48V dc |
| Output Current | 5A |
| Power Rating | 240W |
| Electrical Phase | 1 |
| Height | 135mm |
| Width | 45mm |
| Depth | 125mm |
| Mounting Type | DIN Rail Mount |
| Series | SITOP |
| Output Voltage Adjustment Range | 48 → 56V |
| Maximum Temperature | +70°C |
| Ripple And Noise | 50mV |
| Minimum Temperature | -25°C |
| Efficiency | 93.9% |

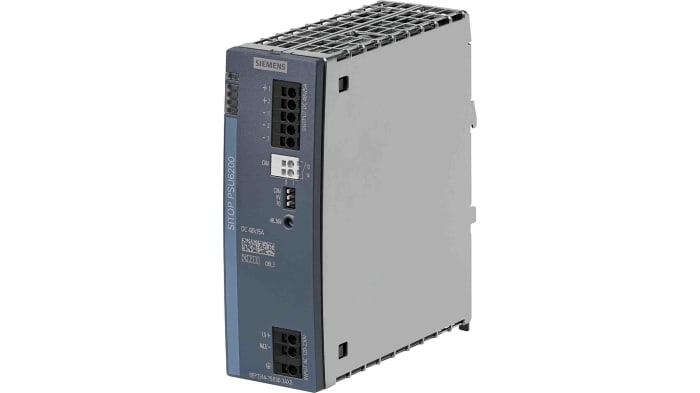

Siemens DIN Rail Power Supply, 85 to 264V AC Input, 48V DC Output – SITOP PSU6200 Series – 6EP3344-7SB00-3AX0
Provide energy to your DIN rail-connected components with this power supply unit from Siemens. Also known as an electric power converter, this device regulates incoming energy and supplies it in the values required by connected equipment. It has a wide input voltage range of 85 to 254V AC (alternating current), making it a versatile choice. The component has air vents that allow for passive cooling from the environment, so heat is reliably dissipated and performance is optimised. A wide operating temperature range of -30°C to +70°C makes this unit suitable for use in demanding environments. It’s commonly used to power programmable logic controllers (PLCs) and alarm systems.
• IP20 (ingress protection) rating means it’s protected against dust and objects larger than 12mm in size
• Integrated circuit breaker for overload and short-circuit protection
• Green LED (light-emitting diode) status indicator to clearly display operating conditions
• DIN rail mounting for quick and simple installation
What size is this unit?
This power supply has compact dimensions of 135 (height) x 45 (width) x 125mm (depth), so it’s a good choice for use in setups where space is limited.
