Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 320 → 575V ac |
| Output Voltage | 24V dc |
| Output Current | 20A |
| Power Rating | 480W |
| Electrical Phase | 3 |
| Type | Power Supply |
| Height | 125mm |
| Output Voltage Adjustment Range | 4 → 28V |
| Mounting Type | DIN Rail Mount |
| Depth | 150mm |
| Load Regulation | 0.1 (Static Load) %, 0.4 (Dynamic Load) % |
| Ripple And Noise | 100mV |
| Efficiency | 93% |
| Maximum Temperature | +60°C |
| Minimum Temperature | -25°C |
| MTBF | 243178h |

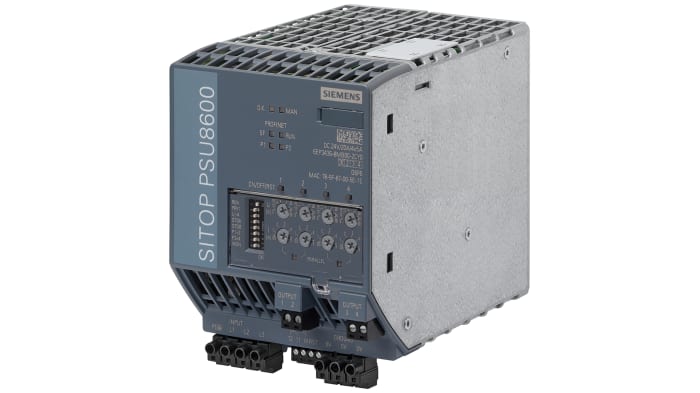

Siemens DIN Rail Power Supply, 480W Power Rating, 40A Current Rating – SITOP PSU8600 Series – 6EP34368MB002CY0
Looking for a versatile power supply unit (PSU)? This one from Siemens works by converting AC input voltages ranging from 320 to 575V into a stable output of 24V DC that your appliances can use. The PSU’s metal housing is durable and resistant to corrosion and impact, so it can withstand harsh environments. It has air vents to allow for passive cooling, which prevents overheating and ensures optimal performance. As the unit is PROFINET/Ethernet compatible, you can easily monitor and configure it from remote locations. You’ll find devices like this one is frequentlycommonly used to provide power to industrial motors and relays.
• Wide operating temperature range of -25°C to +60°C for safe industrial use
• Electronic overload cut-off feature protects the unit and surrounding equipment during a short circuit
• IP20 (ingress protection) rating means it’s dust-tight and protected against objects larger than 12mm in size
How do I install this PSU?
It’s easy to install this PSU and you won’t need any tools. Simply clip it onto your DIN rail and it’s ready for use.
